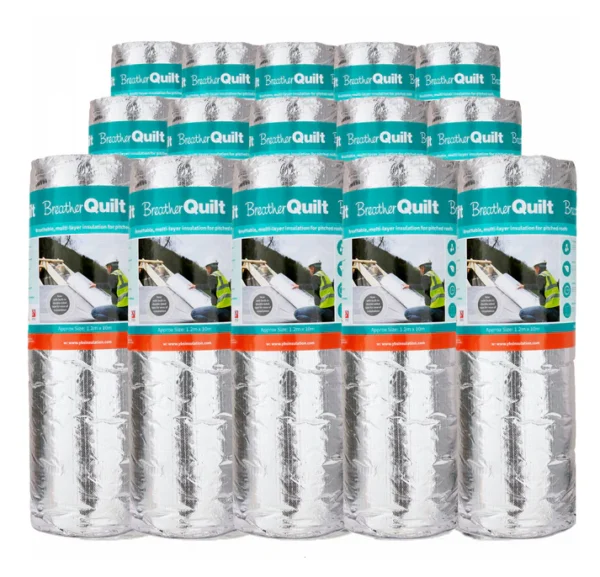

YBS BreatherQuilt 10m x 1.2m Pallet Deal 15 Rolls (180sm)

SQBREATHERPD

Description

YBS BreatherQuilt 10m x 1.2m Pallet Deal 15 Rolls (180sm)

BreatherQuilt — Advanced 3-in-1 Insulation + Breathable Membrane

BreatherQuilt is a high-performance, multi-layer reflective insulation system that combines thermal insulation, water resistance, and vapour permeability — eliminating the need for a separate breather membrane.

Key Features & Benefits

  • Integrated 3-in-1 Solution
    Acts as an insulating layer, a breathable membrane, and a waterproof barrier all in one product.

  • High Thermal Performance
    Delivers an R-value of 1.62 m²·K/W (equivalent to approximately 75 mm of mineral wool).

  • Condensation Control

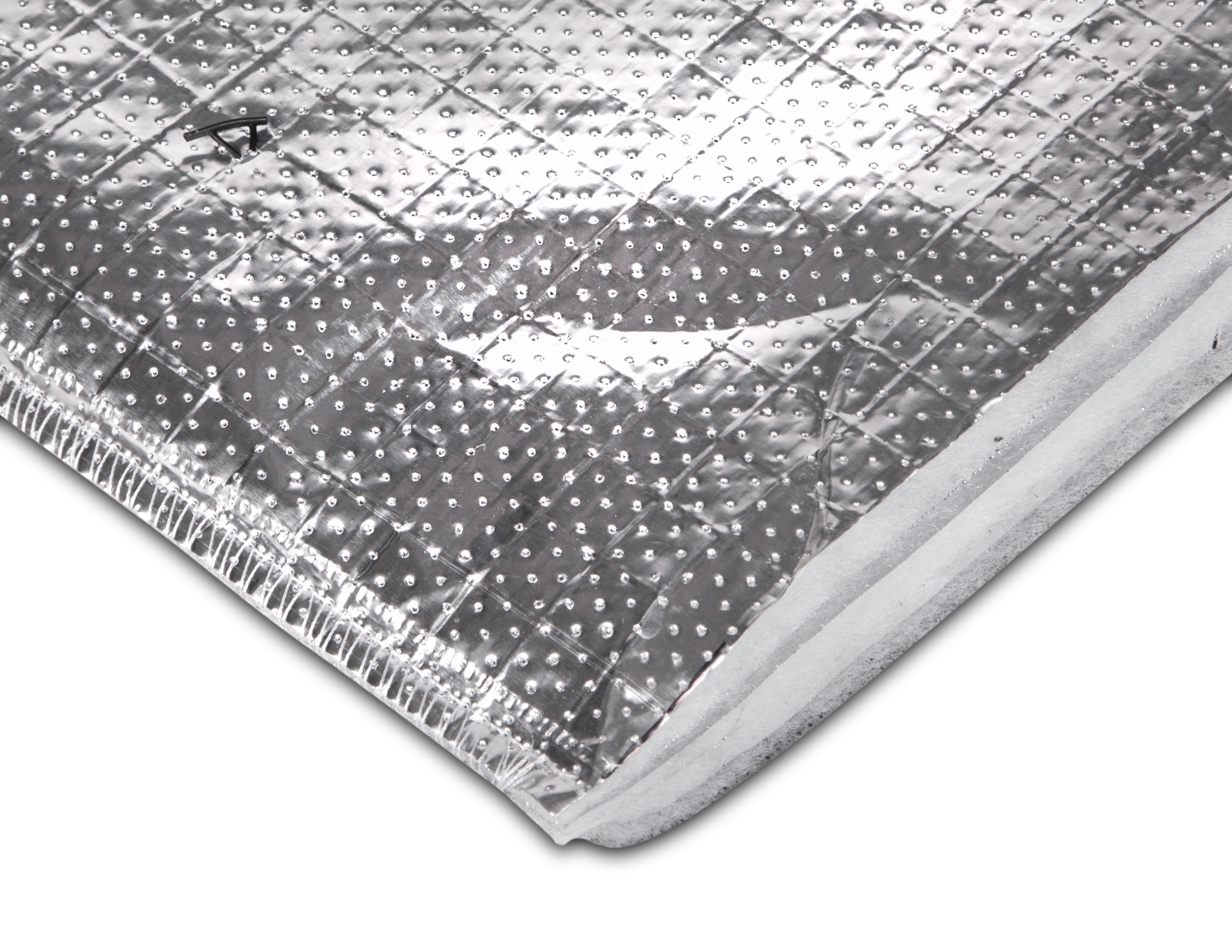

    The core uses micro-perforated reflective layers and recycled polyester wadding to allow moisture to pass outward while resisting inward water ingress.

  • Lightweight & Easy to Install
    At 40 mm thick with 11 layers, it is flexible and manageable on site. Adhesive tape is built in for simple overlapping joints.

  • Sustainable Materials
    Made from around 72% recycled content.

  • Zero Fibres, Lower Health Risks
    No fibre shedding means less concern for installer exposure compared to fibrous insulation types.

  • Compliance & Certification
    Fully Agrément Certified and accepted by Building Control and NHBC.

  • Thermal Bridging Reduction
    Unique overlapping installation method minimizes thermal bridging.

Ideal Applications

BreatherQuilt is particularly well suited for pitched roofs, where it replaces both insulation and breather membrane layers. It helps:

  • Reduce heat loss by up to 76%

  • Prevent condensation issues

  • Simplify the roof build-up by combining layers

  • Meet regulatory demands for insulation in both new build and retrofit projects

Additional information

Length

Width

Thickness

Specification Overview

Specification Detail
Product Type Multi-layer reflective insulation and breather membrane
Thickness 40 mm nominal
Core Composition 11 layers of reflective foil, micro-perforated membranes, and recycled polyester wadding
R-Value 1.62 m²·K/W (equivalent to approx. 75 mm mineral wool)
Thermal Conductivity (λ) 0.033 W/m·K (equivalent)
Water Vapour Resistance (Sd Value) 0.115 m
Air Permeability ≤ 0.009 m³/m²·hr·Pa
Water Resistance W1 (highest classification)
Fire Classification Class E (EN 13501-1)
Recycled Content Approx. 72%
Weight 6.5 kg per roll
Roll Size 1.2 m x 10 m (12 m² coverage)
Core Material Recycled polyester and aluminium foil layers
Service Temperature Range -40°C to +80°C
Certification BBA Agrément Certified
Installation Method Horizontally or vertically using built-in double-sided tape for sealed joints

Datasheets

Superquilt Breather TDS

£1,465.00
